JAW CRUSHER

What you need to know

Jaw crusher is widely used in mining, quarry, metallurgy, building material, highway, railway, water conservancy and chemical industry. Various materials with compressive resistance less than 350 Mpa can be crushed.

According to the width of the feed opening, a jaw crusher can be divided into three types: large, medium and small. The width of the feed port is larger than 600mm, which is a large jaw crusher. Medium-sized jaw crusher with a width of 300-600mm for the feed opening. The width of the feed port is less than 300mm is a small crusher.

We have primary (Rough break) and secondary (Finely break) types of jaw crusher. Roughly broken is PE model, it has the features of large input and large output. Fine breaking is PEX model, it has the features of small input and small output.

Advantages

• 1. Low noise and less dust
• 2. High crushing ratio with uniform product size
• 3. Simple structure, reliable and low-cost operation

Parameter

HAMMER CRUSHER

What you need to know

Hammer crusher can crush medium-hard and brittle materials, such as limestone, coal, salt, baiya, gypsum, alum, brick, tile and coal gangue with compression resistance less than 150kg/cm2, mainly used in cement, mining, coal, electricity and chemical industry.

Advantages

• 1. Simple and compact structure
• 2. High capacity and low energy consumption
• 3. Smooth operation, economical and environment-friendly

Parameter

IMPACT CRUSHER

What you need to know

The impact crusher is mainly used in highway, reservoir, railway, airport and etc. It can handle various materials with compression resistance no more than 360 Mpa. It can break medium hard rock, such as granite, cobble, limestone, quartz, coal mine and other materials.

Advantages

• 1. The discharge size can be adjusted
• 2. Compact structure, easy operation and maintenance
• 3. High capacity and economical

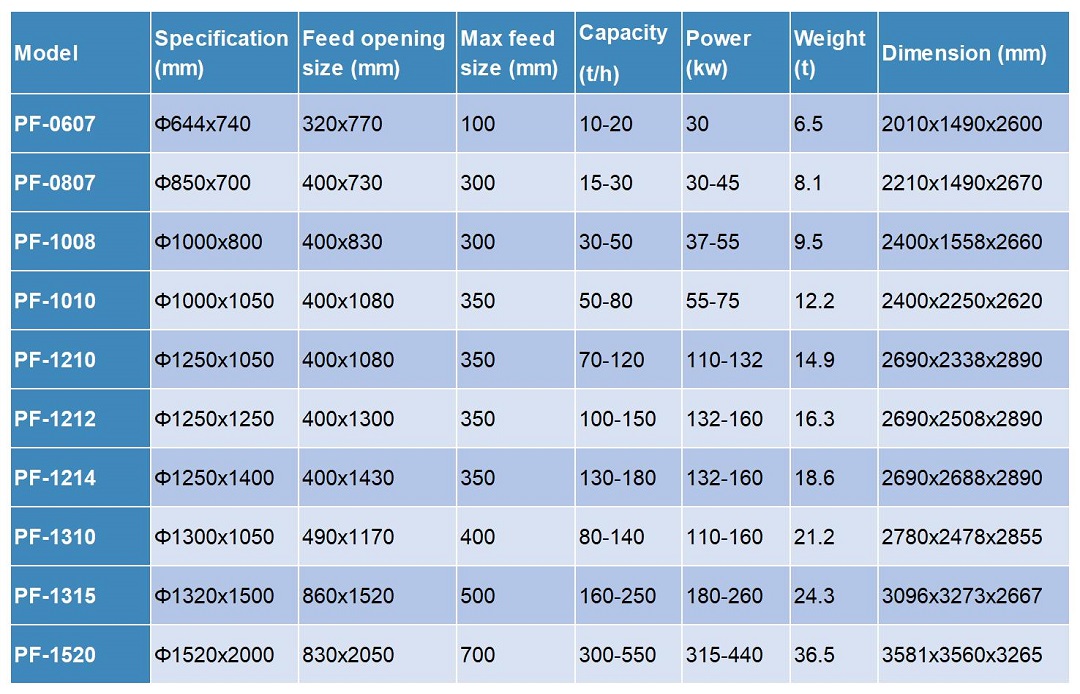

Parameter
